Anatomy
You can annotate and display visual attributes of each element within an Anatomy section.
Table of contents:

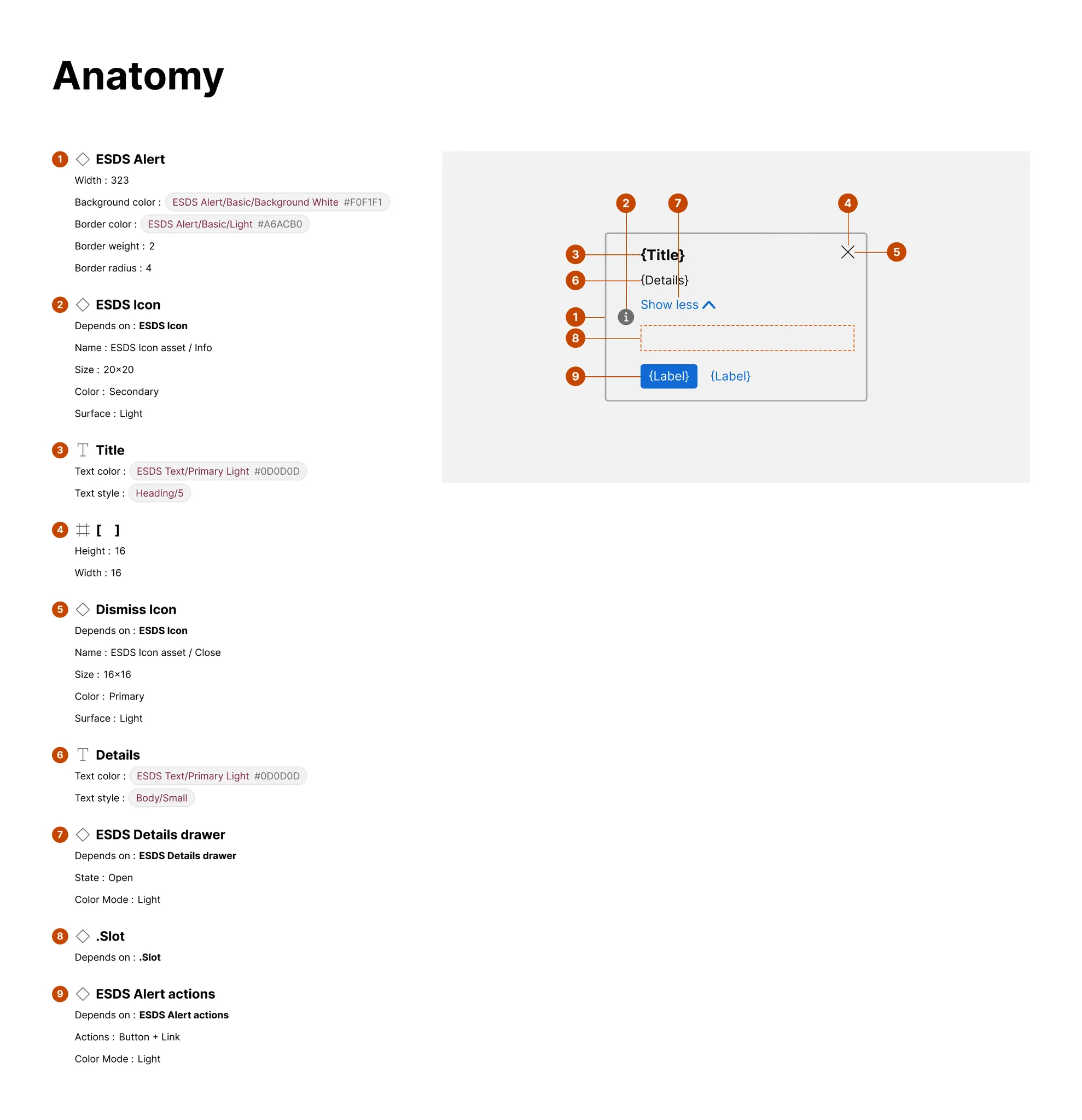

What it includes
The Anatomy section includes:
An itemized element list (the "content") that can include:
All text, line, polygon, star, rectangle, and similar layers encountered
All frame layers to which relevant attributes are associated
All nested component instances, but not any children layers within those nested instances
A frame (the "artwork) that includes a cloned version of the selected item and annotated markers associating each element with the enumerated item in the list
Relevant content can include:
Element name
Element Figma layer type (indicated by an icon)
Dependency ("Depends on"), associating a nested instance with it's origin component
Visual attributes, such as
background color,widthandopacity, that – if Properties is also produced – are limited to those that do not vary across property optionsConfigured property values of nested instances
How it works
To produce the anatomy, the plugin traverses the node’s layers to itemize and mark text, instances, and other shapes as elements.
Each itemized component is enumerated in the content, with instances highlighting dependency name and relevant prop values and other nodes reflecting visual attributes and styles. In the artwork, markers are placed on the periphery, prioritizing the left edge and finding a location on any edge that hasn’t already been used.
The plugin stops traversing into a the hierarchy of a component (like Card) when it runs into a nested component (like CardText). Spec authors are encouraged to run the plugin again on each relevant nested component. Refer my writing on Subcomponents for learn more.
The results work for most practical component displays, even if it’s not perfect. In extreme cases, components with many sibling elements “cross the streams” (nod to Ghostbusters) of each marker’s tail and many components left unmarked. In these cases, spec authors can prune and tailor what markers work best.
Examples

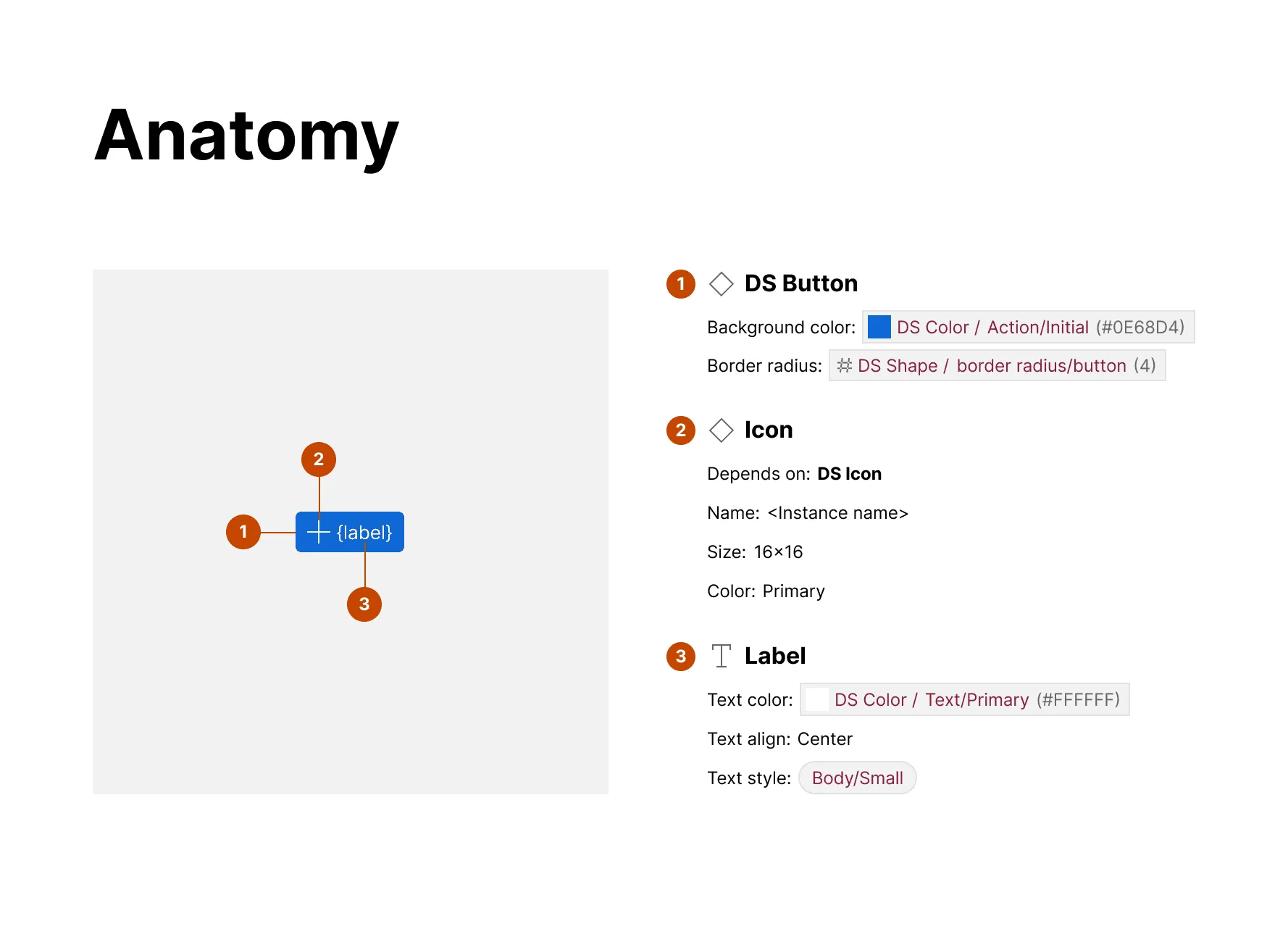

Simple anatomy
The Button anatomy includes elements for Icon, Label and the DS Button container (since it has relevant visual attributes applied to it).

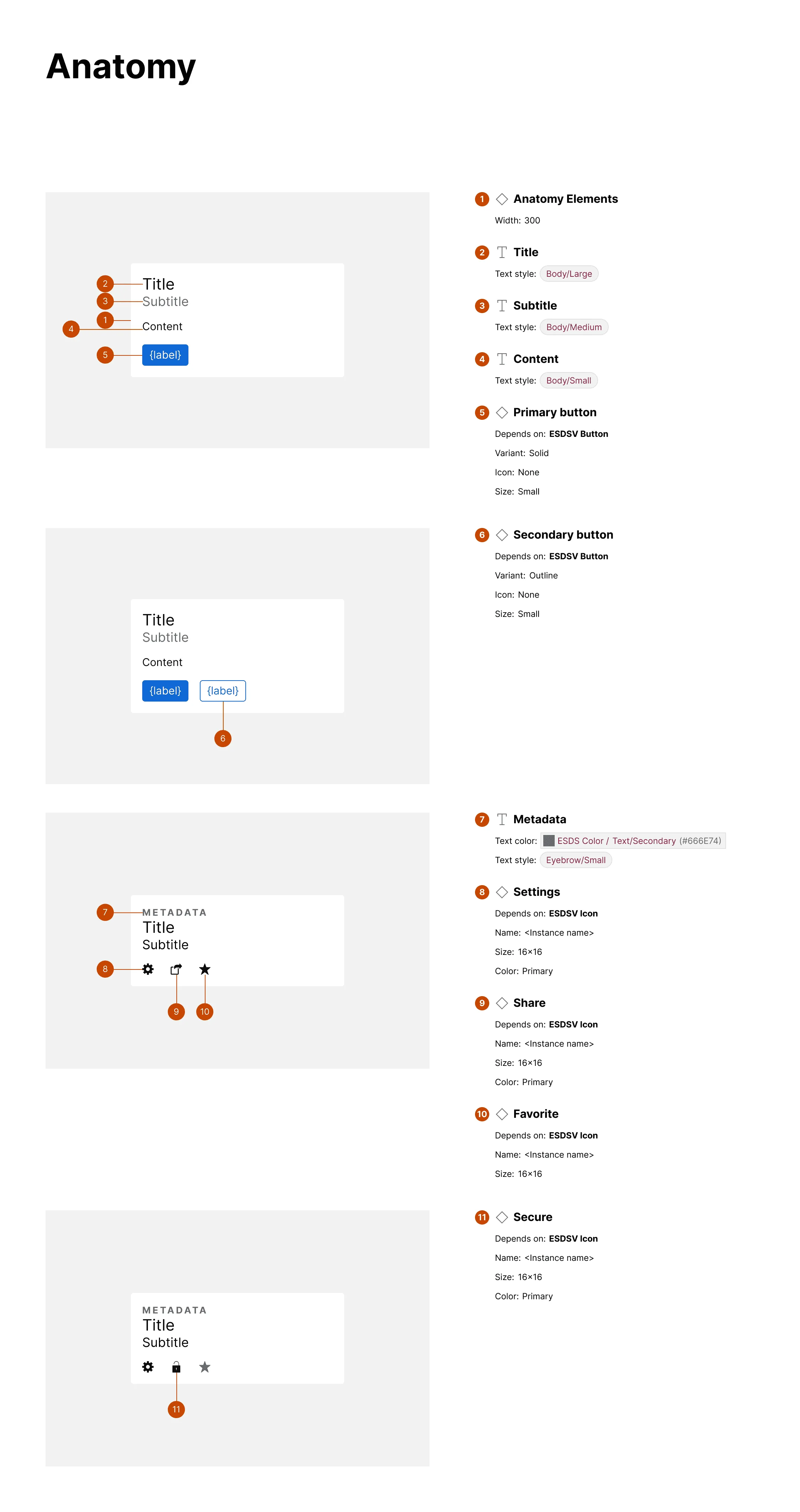

Complete anatomy
This card-like example has multiple anatomy sections, one for each variant that includes one or more newly detected elements. This complete anatomy feature is available for upgraded subscribers

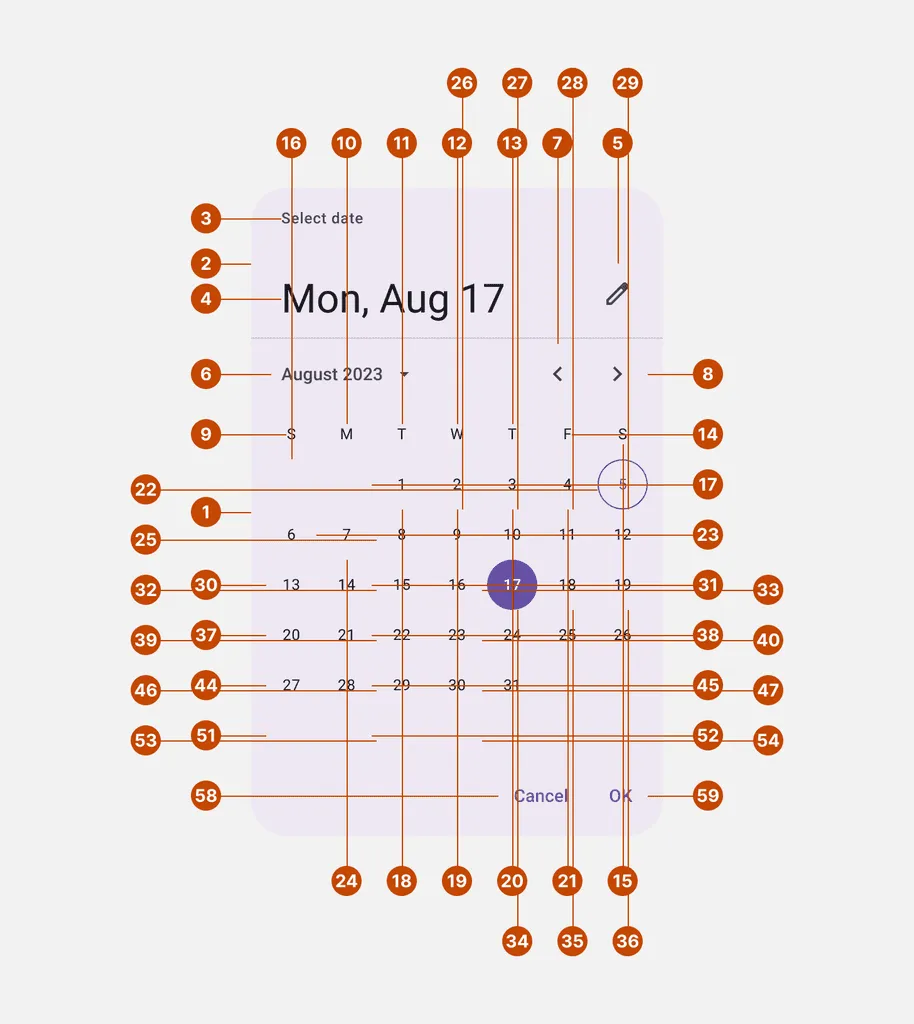

Material modal date picker
In this extreme example, the Anatomy itemizes every cell of the calendar. As markers surround the date picker in a first ring, the plugin then begins including a second ring of markers slightly offset until those, too, run out of space. For each element, the plugin attempts to place a marker on all four sides in the first ring, then all four sides of the second ring, and then gives up.
